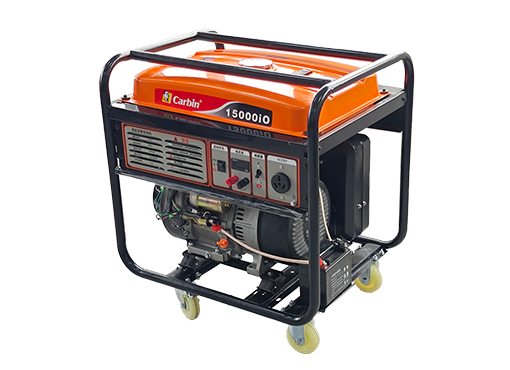

10.0KW 汽油變頻發電機
| 采用196F（550cc）大功率發動機 | 196F, 550cc large power engine |
| 自主技術研發逆變器，電機，可靠性，耐用性更有保障，專為負載大功率，多設備而設計 | Inverter and motor are developed with independent technology which are specifically designed to handle high-power loads and multiple devices, ensuring greater reliability and durability |
| 純正弦波輸出電壓，針對精密儀器最佳！ | Pure sine wave output voltage, the best choice for precision instruments. |
| 型號 Model |
GF 15000iO |
| 頻率 Frequency |
50/60 Hz |
| 額定電壓 Rated Voltage |
230/110 V |
| 額定/最大功率 Rated/Max Power Output |
9.5/10.0 KW |
| 電壓調節方式 Voltage Regulation |
變頻 Inverter Board |
| 發動機 Engine Model |
196F |
| 功率因數 Power Factor |
1 |
| 供油方式 Fuel Supply Mode |
化油器 Carburetor |
| 缸徑 x 行程 Bore x Stroke |
96 x 76 mm |
| 排量 Displacement |
550cc |
| 啟動方式 Starting System |
手啟動/電啟動 Recoil/Electric |
| 燃油/機油容量 Fuel / Oil Capacity |
32.0/1.1 L |
| 毛重/凈重 Gross / Net Weight |
93.0/89.0 KGS |
| 外形尺寸 (長x寬x高) Dimensions L × W × H |
690 × 555 × 655 mm |
| 包裝尺寸 (長x寬x高) Packing Size L × W × H |
705 × 570 × 685 mm |
| 裝柜數量 Container Load Q'ty |
99 pcs, 20GP 255 pcs, 40HQ |
